One Product Series, Many Applications

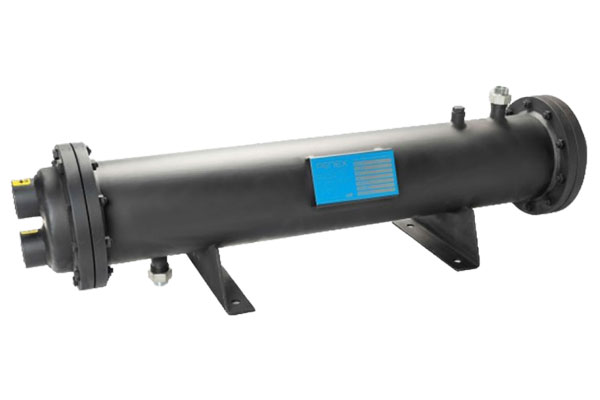

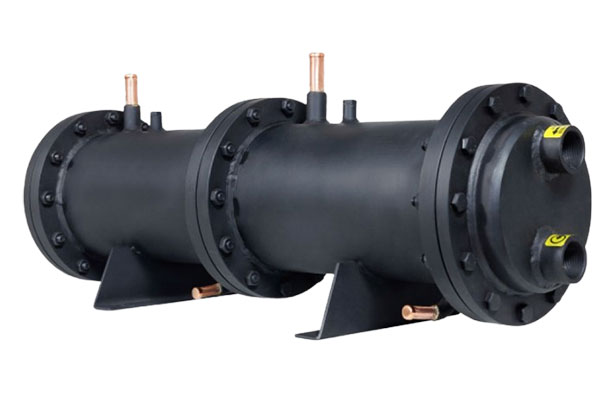

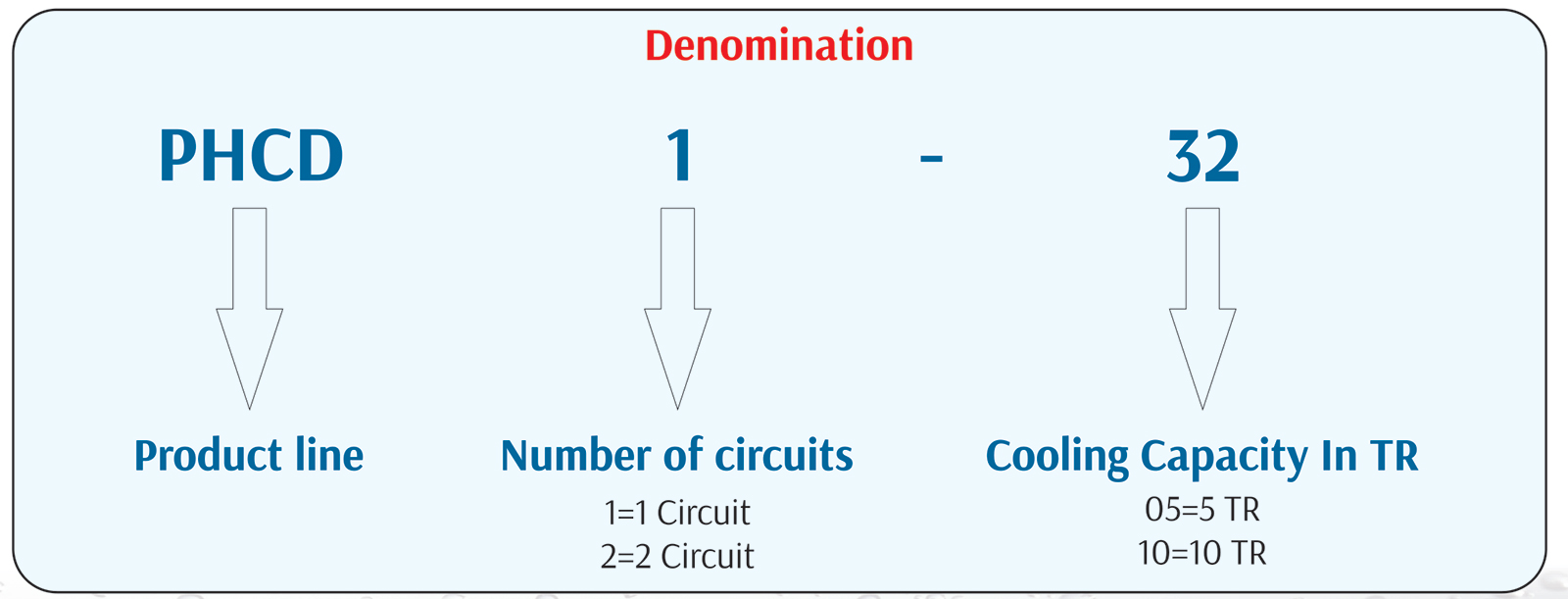

The water cooled shell and tube condensers from PENEX have been a standard in refrigeration and air conditioning technology for 15 years due to their well-known reliability and performance. The PHCD series consists of two designs and thus meets the requirements of a wide variety of applications. The unique brazing process between tubes and tube sheets ensures excellent vibration stability and high safety in terms of tight-ness.

Standard Design For Normal Water

The heat exchanger tubes are characterised by high material thickness; This series is suitable for all types of coolants that do not attack copper.

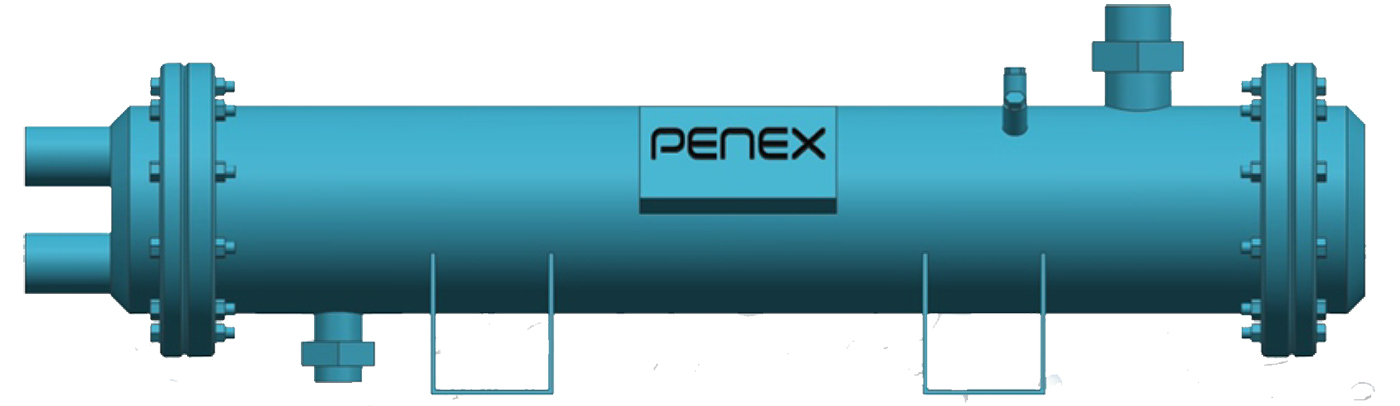

Material

Seamless Carbon Steel Shell.
Fouling resistance Standard Copper Tubes.
Designed for safety and performance.
Copper Tubes Eapanded in Steel Flange
Firmely for perfect sealing.
Easy to maintain with both End side
removeable for service.
Firm and Stable Mount installtion for
minimum vibration and smooth operation.

For All common refrigerants and coolants

Finned High Heat Exchange performance Tubes.
Outl-et shut-off valve (Optional).
Dischrge gas desuperheater with henhance capacity.
Connection for second refrigerant out-let.
Connection for pressure relief valve.
Internal thread: 3/8 NPT.
External Thread : 1/4 NPT.
Coolant Drain.

Legends Description Value
A Total Length 1045 mm
B Shell Diameter 168 mm
C Tube Sheet to Tube Sheet 890 mm
D Stand Length 441 mm
E Single Stand Length 180 mm
F Stand Total Length 255 mm
G Total Height : 315 mm
H Water Connection 38.1 mm
I Refrigerant Out-let 19 mm
J Refrigerant Out-let 19 mm



Discharge gas desuperheaters

Construction sizes are also avail-able in the standard design for normal water as dis- charge gas desuperheaters. All that is required is to order the optional second refrigerant outlet.

CONSTRUCTION FEATURES :

For all common refrigerants and coolants

Refrigerant side

  • Finned high performance tubes
  • Refrigerant connections: pipe thread or flange
  • inlet
  • outlet Shut-off valve(optional)
  • various adaptor and valve combinations optional
  • Discharge gas desuperheater special version:
  • Connection for second refrigerant outlet
  • Connection for pressure relief valve
  • internal thread: 3/8 NPT
  • external thread 4 NPT
  • various adaptors optional

Materials :

  • Heat exchanger tubes
  • Standard design: Copper
  • Seawater resistant design: copper- nickel 90/10 (optional)
  • Shells: carbon steel seamless
  • Tube sheets: mild steel & ss (304) ss (316L) optional
  • Coolant reversing covers: mild steel

Protective charge

  • 0,2.. 0,5 bar nitrogen (optional)

Strong construction for easy maintenance

  • High safety in terms of tightness:
  • Heat exchanger tubes are expanded into tube sheets.
  • Easy to clean: Both coolant reversing covers can be removed.
  • Flexible: Coolant reversing covers of connection and
  • Reversing end are exchangeable.
  • Fixing brackets
  • Fixing brackets at the bottom for stable installation
  • Fitting fixing plates and fixing rails optionally available.

Coolant side :

  • Tubes with low-fouling profile inside
  • Coolant connections: pipe thread or flange
  • Coolant drain
  • Additional vent plug(optional)

Performance Data / Technical Data

Model No.

Condenser

Capacity

Kw

Condenser

Capacity

TR



Normal

Coolant

Flow Rate m3 /Hr



Design

Pressur

(shell Side)

PSI

Pressure

Drop

(Approx.)

Kg 0.5-1.5

Gas



Weight (Approx.) Kg
PHCD 1-05 17.55 5 3.75 400 R407c 65
PHCD 1-07 24.57 7 5 400 R407c 68
PHCD 1-10 35.1 10 7.5 400 R407c 76
PHCD 1-12 42.12 12 9 400 R407c 115
PHCD 1-15 52.65 15 11.25 400 R407c 127
PHCD 1-20 70.2 20 15 400 R407c 163
PHCD 1-25 87.75 25 18.75 400 R407c 170
PHCD 1-30 105.3 30 22.5 400 R407c 216
PHCD 1-35 122.85 35 24.5 400 R407c 223
PHCD 1-40 140.4 40 30 400 R407c 230
PHCD 1-50 175.5 50 37.5 400 R407c 317
PHCD 1-60 210.6 60 45 400 R407c 330
PHCD 1-70 245.7 70 52.5 400 R407c 360
PHCD 1-80 280.8 80 60 400 R407c 460
PHCD1-100 351 100 75 400 R407c 490
  • 1 The performance data are based on: Refrigerant: R407c
  • 2 Pass
  • Refrigerant inlet temperature: 90°C
  • Fouling factor on the refrigerant side: 0.00004 m2K/W
  • Standard design
  • Condensing temperature: 40°C
  • Coolant inlet temperature: 29°C
  • Seawater resistant design
  • Condensing temperature: 35°C
  • Coolant inlet temperature: 25°C
  • The condenser capacity is strongly influenced by system operating conditions.
  • These specifications take into account a maximum flow velocity of 2.0 m/s for Seawater resistant design.
  • This is necessary for this design to protect the tube profile from wear.

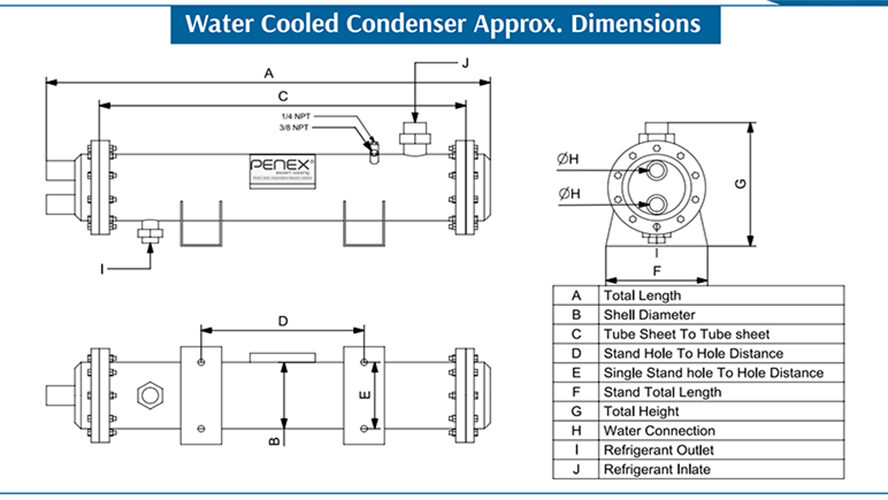

GENERAL DIMENSIONS

Approx. Dimensions

PHCD Model A

mm

 B

mm

 C

mm

 D

mm

 E

mm

 F

mm

 G

mm

 H

mm

 I

mm

J

mm
PHCD 1-05 1045 168 890 441 180 255 315 1.5 19 19
PHCD 1-07 1045 168 890 441 180 255 315 1.5 19 19
PHCD 1-10 1655 168 1500 900 180 255 315 1.5 19 23
PHCD 1-12 1700 220 1510 900 225 304 365 2 23 28
PHCD 1-15 1700 220 1510 900 225 304 365 2 23 28
PHCD 1-20 1700 273 1510 900 280 355 420 2 23 35
PHCD 1-25 1700 273 1510 900 280 355 420 2 23 35
PHCD 1-30 2610 273 2420 1825 280 355 420 2.5 28 41
PHCD 1-35 2610 273 2420 1825 280 355 420 2.5 28 41
PHCD 1-40 2610 273 2420 1825 280 355 420 2.5 28 41
PHCD 1-50 2610 323 2420 1825 326 406 470 3 28 41
PHCD 1-60 2670 323 2420 1825 326 406 540 3 35 54
PHCD 1-70 2700 355 2420 1825 381 457 565 4 35 54
PHCD 1-80 3575 323 3034 1965 326 406 540 4 41 54
PHCD 1-100 3575 355 3034 1965 381 457 565 4 41 54

Penex Quality Standards

Seamless Shell Pipe
Thickness : 6-8 mm

Tube Sheet
Thickness : 35-50 mm

Copper Internally Finned Tubes With 75 Internal Ridges of 0.3 mm groove depth at helix angle of 18 degrees

Copper Condenser Fin Tubes Outer Fins of 42 FPI with cross Knurling, plain ID

Copper tube Standards

Phosphorus Deoxidized Copper (DLP)

Standard

 SB – 75, 111, 359, 395 BS 2871 JIS H 3300

DIN 1787

 IS: 1545
Symbol C – 12000 C 106 C 1201 SW-CU 25 Cu-DLP
Phosphorus Deoxidized Copper (DHP) Standard SB – 68, 75, 111, 280, 355, 395, 819 BS 2871 JIS H 3300 DIN 1787 IS:2501,10773,14810
Symbol C – 12000 C 106 C 1220 C 1220 Cu-DHP
Toudh Pithc Copper(ETP) Standard ASTM B-188 BS 2871 JIS H 3300 DIN 1787 IS:2501
Symbol C – 11000 C 101 C 1100 ECU 58 Cu-ETP
